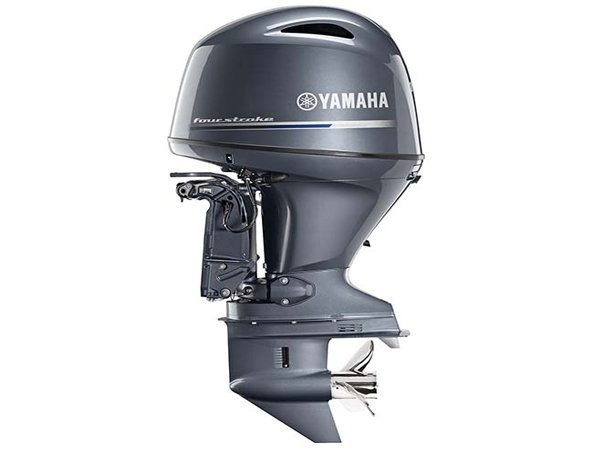

2018 Yamaha F75 Midrange Mechanical 20 F75LB Outboard Motor
$9,700.00
The 2018 Yamaha F75LB is a midrange outboard that delivers the perfect balance of power and efficiency for inshore anglers, family boaters, and workboat operators. This 4-cylinder, 1.8-litre SOHC four-stroke outboard produces 75 HP at 5,500 RPM, configured with remote mechanical controls, electric start, power trim & tilt, and a 20-inch long shaft — making it an excellent match for aluminum fishing boats, center console skiffs, and bay boats across California and the United States.
- Description
- Reviews (0)
Description
The F75LB is built around Yamaha’s1,832cc single-overhead-camshaft four-cylinder powerhead — a 1.8-litre, 16-valve design that provides exceptional breathing and efficiency . The four-valve-per-cylinder configuration ensures great engine combustion, contributing to horsepower, torque, and fuel efficiency .
The Precision Multi-Point Electronic Fuel Injection system delivers the exact amount of fuel needed for optimum performance and efficiency, with Yamaha’s EFI optimizing fuel atomization for enhanced fuel economy. The TCI microcomputer ignition adjusts timing to maintain optimal engine performance, economy, and power under all operating conditions .
The composite intake manifold features long tube intake tracks, tuned to increase airflow, which boosts low-end and midrange torque. The air silencer box and surge tank reduce air intake noise and air turbulence for smooth, quiet operation .
The 35-amp high-output alternator ensures that power is always available to start the engine, even after long periods of idling or running at low revs . This provides ample charging capacity for onboard electronics, fish finders, and radios.
Yamaha’s Phaze Five™ electro-deposited anti-corrosive paint system, combined with their proprietary YDC-30 alloy, provides a tough, five-layer barrier against corrosion. The Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life .
The Power Trim and Tilt system provides a trim range of -4° through +16° with a 70° tilt range, bringing the bow of the boat up for better hole shot, top speed, and a smoother ride .
| Specification | Value |
|---|---|
| Model | Yamaha F75LB |
| Year | 2018 |
| Engine Type | 16-Valve SOHC In-Line 4-Cylinder, 4-Stroke |
| Displacement | 1,832 cc (111.8 in³) |
| Bore × Stroke | 81 × 88.9 mm (3.19 × 3.5 in) |
| Compression Ratio | 10.0:1 |
| Maximum Output | 75 HP (56 kW) @ 5,500 RPM |
| Operating Range | 5,000–6,000 RPM |
| Fuel System | Multi-Point Electronic Fuel Injection (EFI) |
| Starting System | Electric |
| Ignition System | TCI Microcomputer |
| Gear Ratio | 2.15:1 |
| Transom Height | 20 inches (Long) |
| Dry Weight | 353 lbs (162 kg) |
| Alternator Output | 12V 35 Amp |
| Trim System | Power Trim & Tilt, -4° to +16° |
| Steering | Remote Mechanical Controls |
| Recommended Fuel | Octane 87 |
| Recommended Oil | Yamalube® 4M |
| CARB Rating | 3-Star Ultra-Low Emission |
| Warranty | 3-Year Limited Pleasure |
The 75 HP outboard segment is competitive, with strong offerings from Mercury 75 FourStroke, Suzuki DF75A, and Honda BF75. Here’s how the F75LB compares on the specifications that matter:
| Feature | Yamaha F75LB | Mercury 75 | Suzuki DF75A | Honda BF75 |
|---|---|---|---|---|
| Displacement | 1,832 cc | 2,100 cc | 1,502 cc | 1,496 cc |
| Engine Type | SOHC 4-Cyl | SOHC 4-Cyl | DOHC 4-Cyl | SOHC 4-Cyl |
| Weight | 353 lbs (162 kg) | ~399 lbs | 344 lbs (156 kg) | ~357 lbs |
| Fuel System | EFI | EFI | EFI | EFI |
| Alternator | 35A | 30A | 27A | 44A |
| Warranty | 3-Year | 3-Year | 3-Year | 3-Year |
The F75LB’s 35-amp alternator provides superior charging capacity compared to the Suzuki DF75A (27A) and Mercury 75 (30A) . Its 1.8-litre displacement is larger than the Suzuki and Honda offerings, delivering strong low-end torque for heavier loads .
Independent performance testing on a Quintrex 460 Renegade SC with the F75LB provides real-world fuel economy and speed data :
| RPM | Speed (km/h) | Fuel (L/h) | Efficiency (km/L) |
|---|---|---|---|
| 1000 | 6.30 | 1.85 | 3.41 |
| 2000 | 10.15 | 4.05 | 2.51 |
| 3000 | 26.50 | 7.80 | 3.40 |
| 3500 | 34.00 | 9.75 | 3.49 |
| 4000 | 40.85 | 12.55 | 3.25 |
| 4500 | 46.70 | 16.20 | 2.88 |
| 5000 | 52.10 | 21.70 | 2.40 |
| 5500 | 57.65 | 29.35 | 1.96 |
| 6000 | 63.95 | 30.95 | 2.07 |
Max Speed: 63.95 km/h (34.47 knots) | Best Cruising: 3.49 km/L @ 3500 RPM | 0-40 km/h: 4.11 seconds
At the most economical cruising speed of 3500 RPM, the F75LB delivers 3.49 kilometres per litre, providing a range of approximately 255 kilometres based on 95% fuel capacity .
The F75LB is well-suited to a wide range of American boating applications:
Aluminum fishing boats — the 20″ shaft and remote controls make it ideal for serious anglers
Center console skiffs — reliable power for inshore and nearshore fishing
Bay boats — the 1.8L displacement handles loaded boats confidently
Pontoon boats — the high-torque powerhead handles light pontoon duty
The engine features a 60mm wide single bore throttle intake that minimises intake resistance and provides first-rate response for brisk acceleration and high-speed operation . The labyrinth exhaust system reduces engine noise at low RPM and idle for whisper-quiet operation .
The F75LB is Command Link® and Y-Cop® compatible, allowing integration with Yamaha’s digital gauge systems for engine monitoring and NMEA2000 connectivity .
All motors ship from our San Francisco, CA warehouse with fast nationwide shipping. California residents pay applicable sales tax; out-of-state buyers receive straightforward delivery to their doorstep.
2018 Yamaha F75LB outboard motor (20″ shaft)
Remote control box and harness
Power Trim & Tilt system
Fuel tank and quick-connect fuel line
Aluminum propeller
Tool kit
Owner’s manual
Yamaha 3-Year Manufacturer Warranty
Complete your installation with these compatible components and services:
Yamaha outboard motor propellers — pitch options for optimal performance
Yamalube 4M engine oil — the recommended oil for your F75
Yamaha 10-micron fuel/water separating filter — protects your EFI system
Zinc anode kit for Yamaha F75LB — protect against saltwater corrosion
Yamaha outboard motor flusher — essential for post-saltwater flushing
Boatworld foldable outboard engine trolley — safe storage and transport
Outboard motor service kit — impeller, spark plugs (LFR6A-11), and fuel filters
Boatworld heavy duty outboard lock — security for your investment
